This is my second Powerwheels Mod Project. I had this 1990 Suzuki Quad Runner sitting in my garage for 2 years and decided 2 weeks ago to strip it down and rebuild it for my 4yr old son.

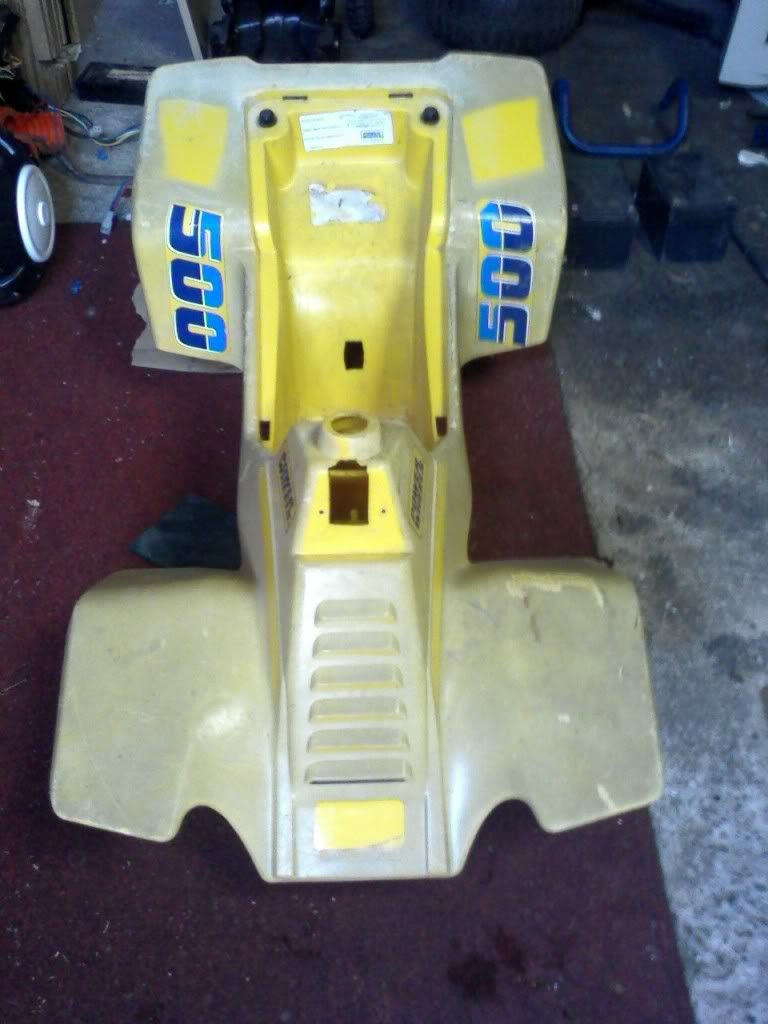

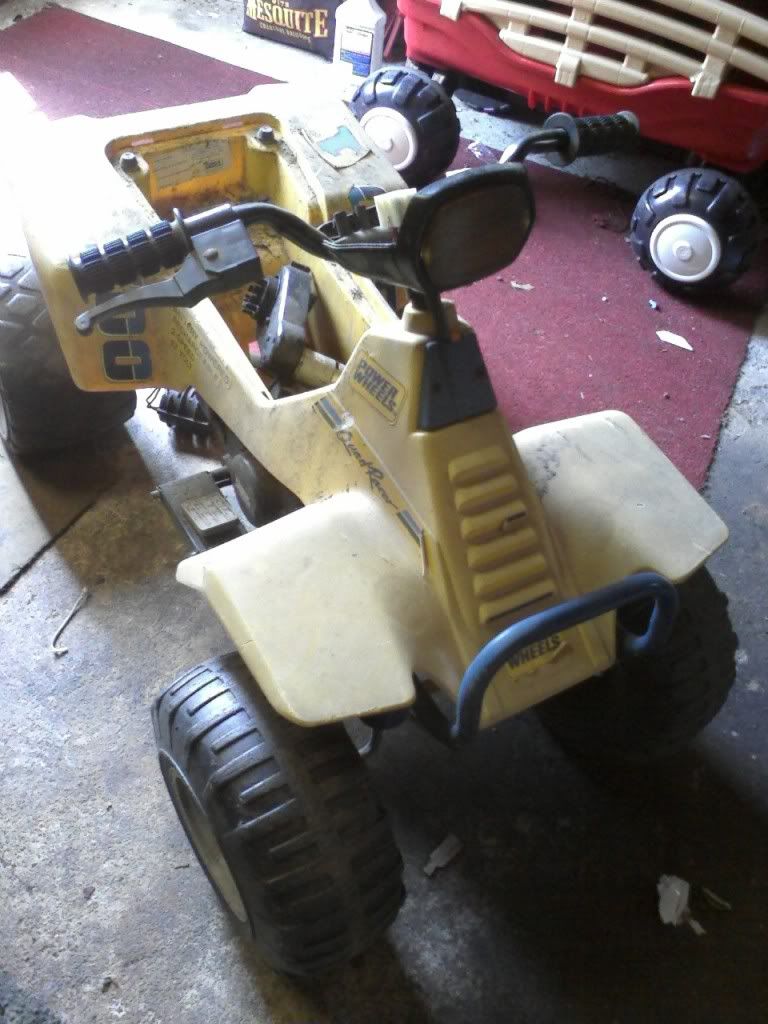

This is the quad original.


I Stripped all the parts off. Refinished all the metal and the main wiring harness.I Gave it some new paint. Added 2 Super6 Motors to the rebuilt gear boxes and added 2 12v 12ah Batteries from a electric scooter. The quad now has some great speed with decent looks to go along with it.

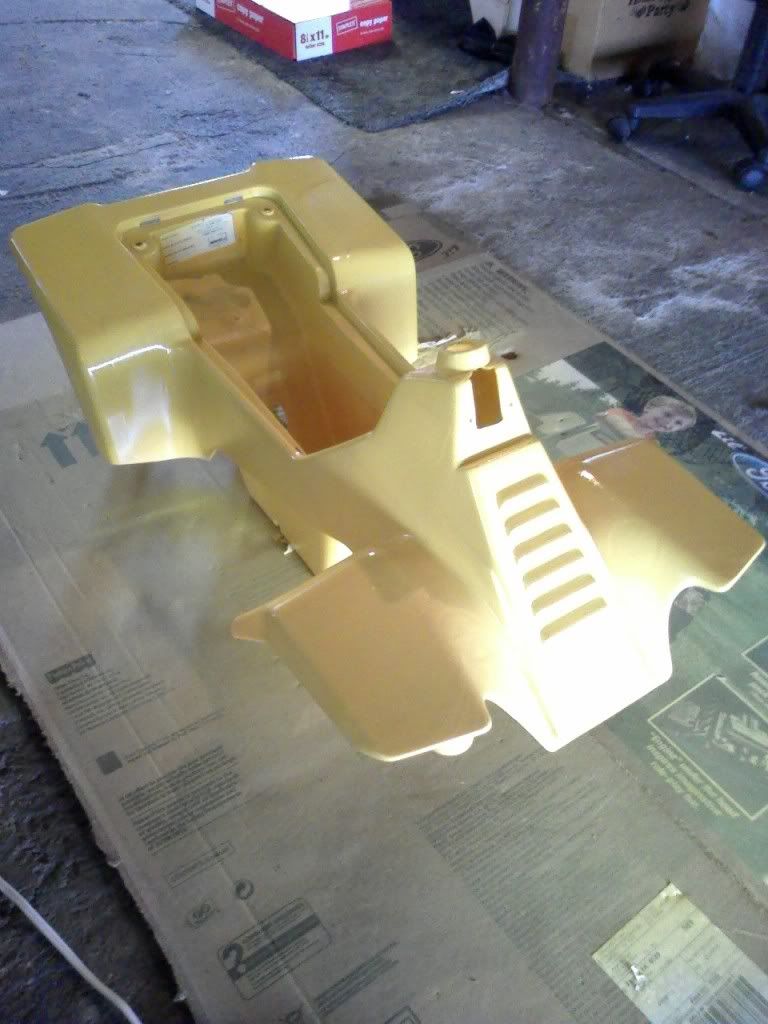

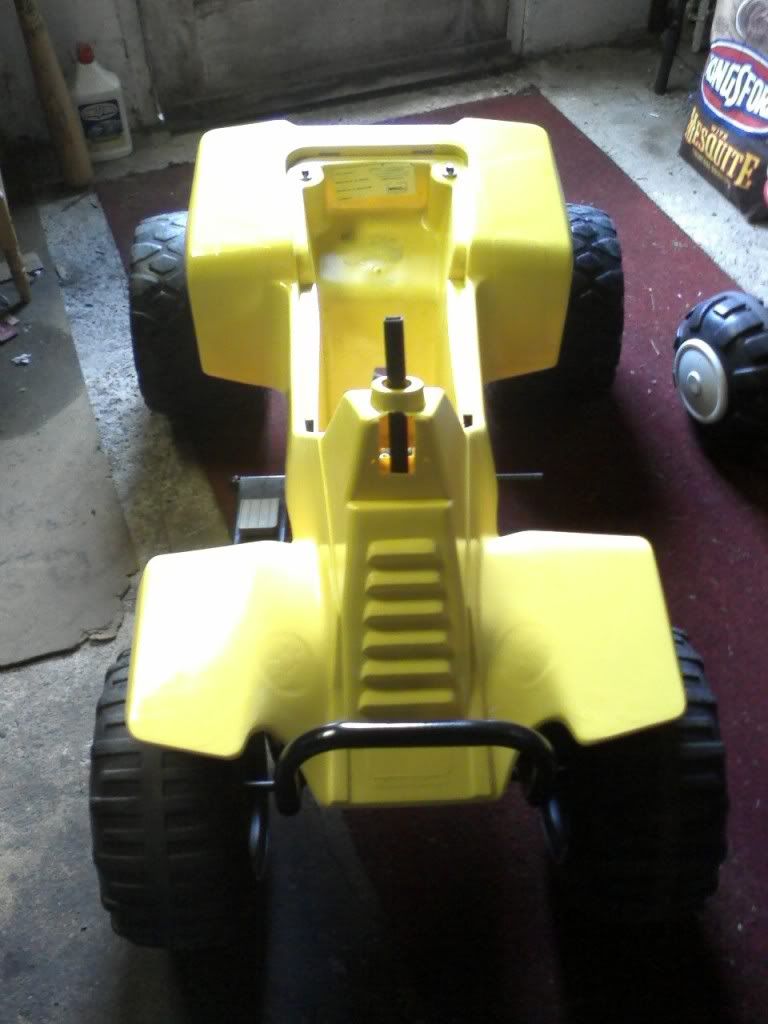

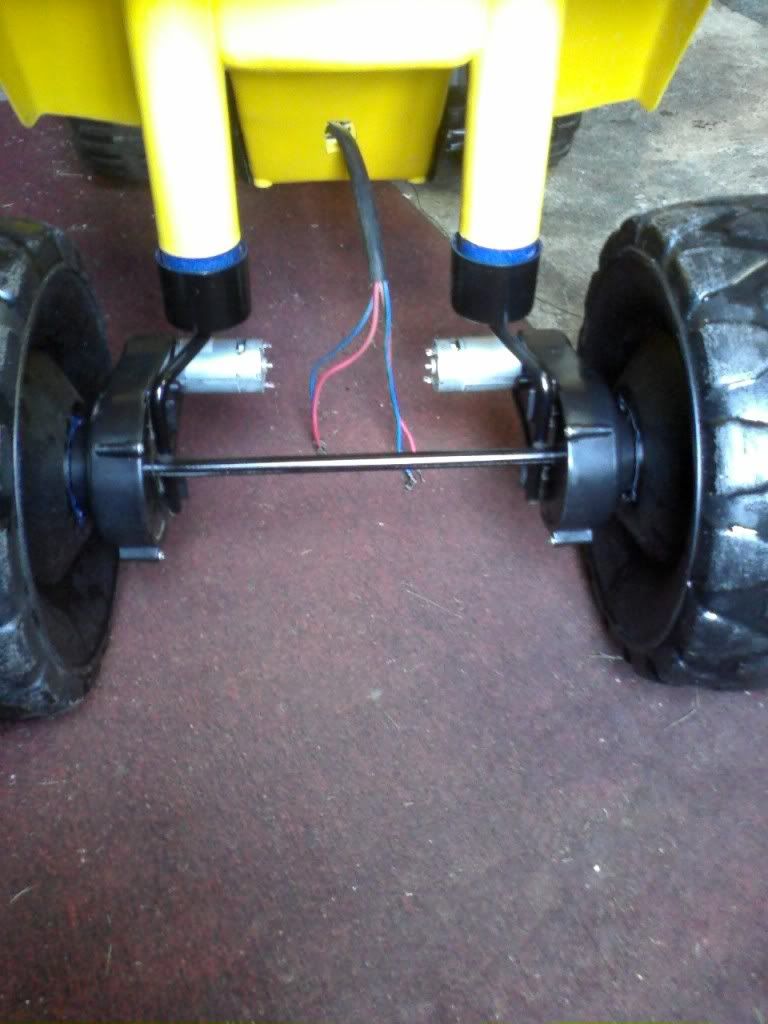

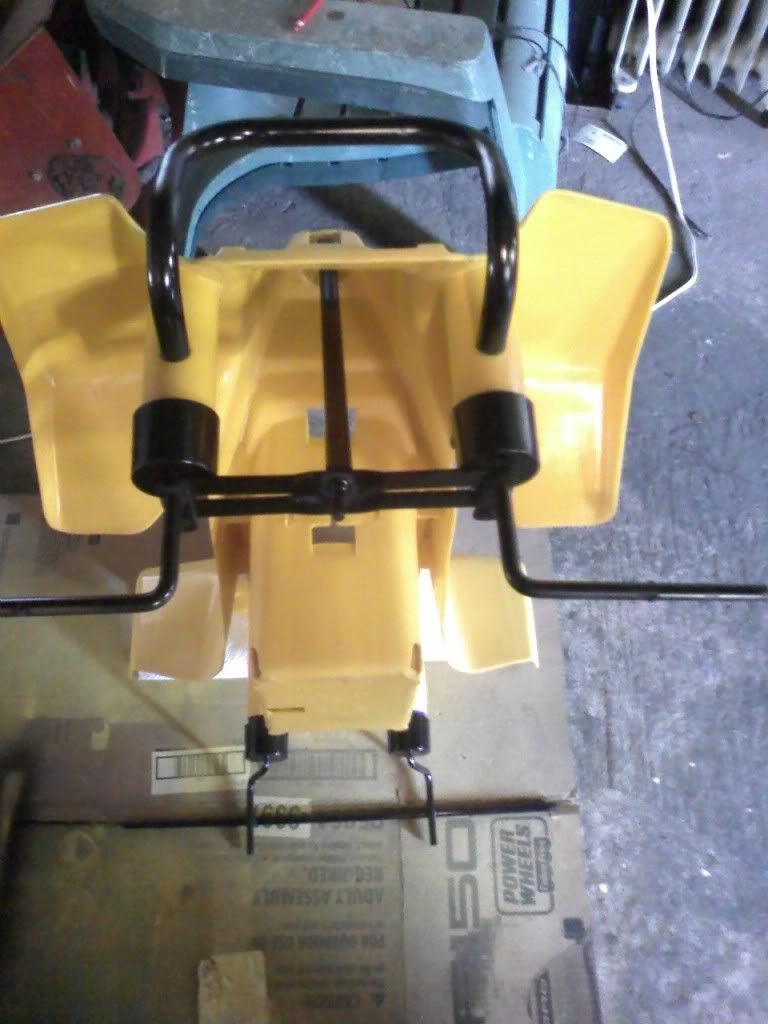

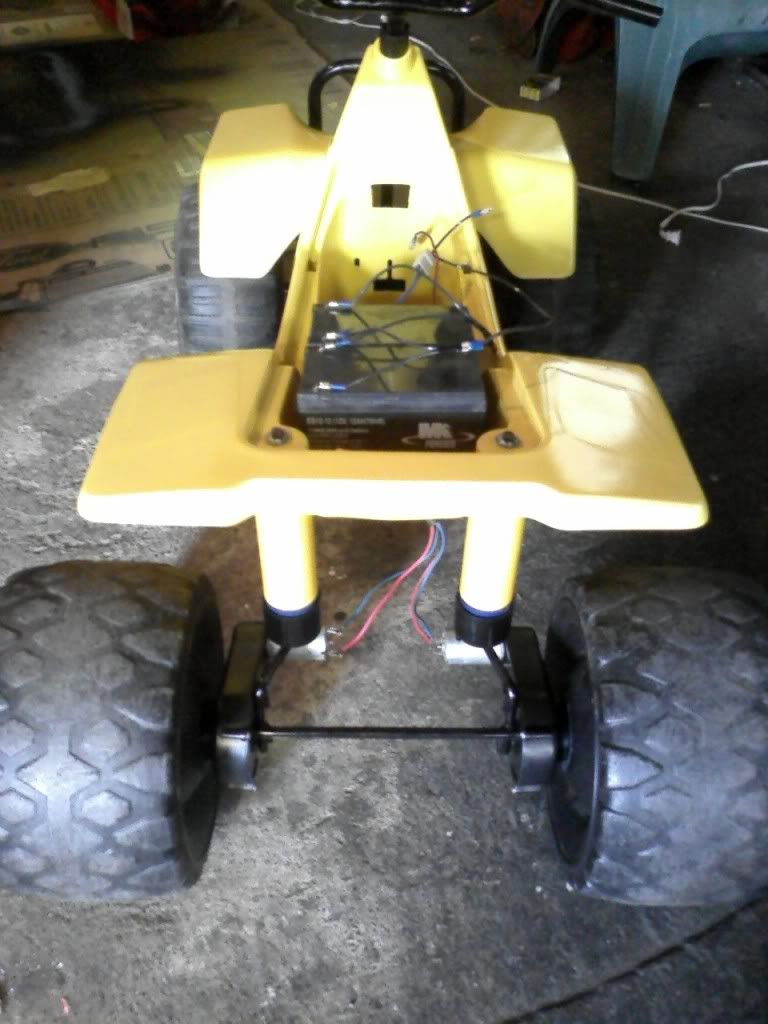

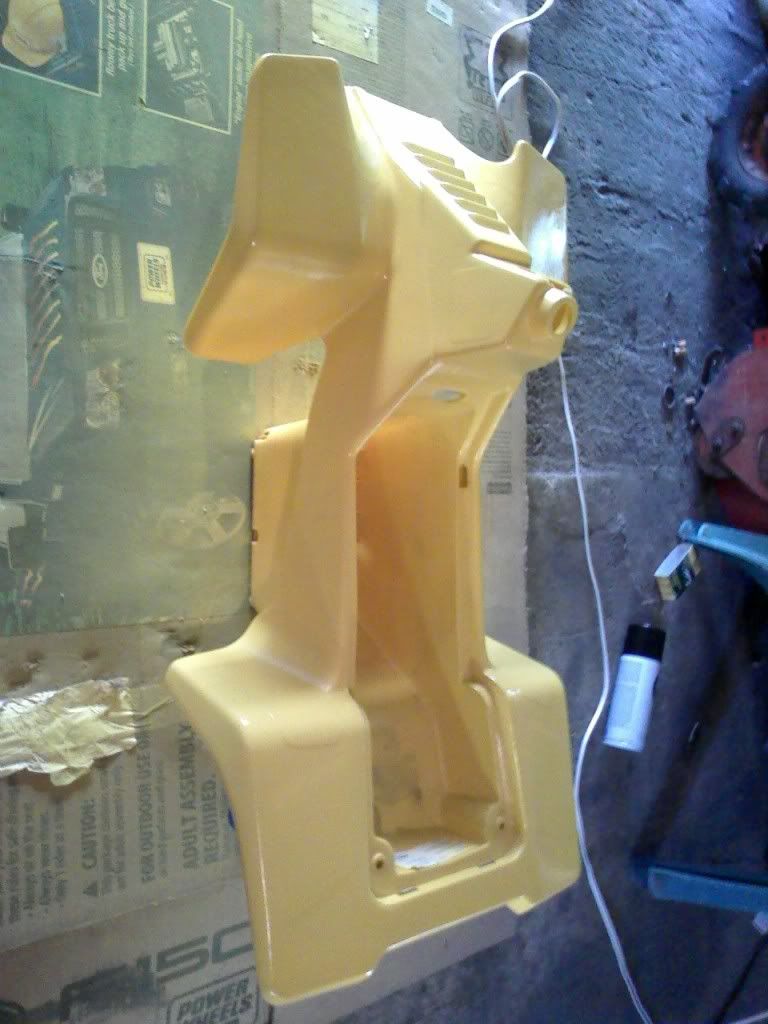

Below are pictures from start to finish




IT TOOK 2 DAYS TO SAND ALL OF THE BAD PLASTIC OFF THE SUN DRIED OUT






Well that is most of it. I have to add the final touches to it. My son put 45 minutes on it this morning and its running great.
